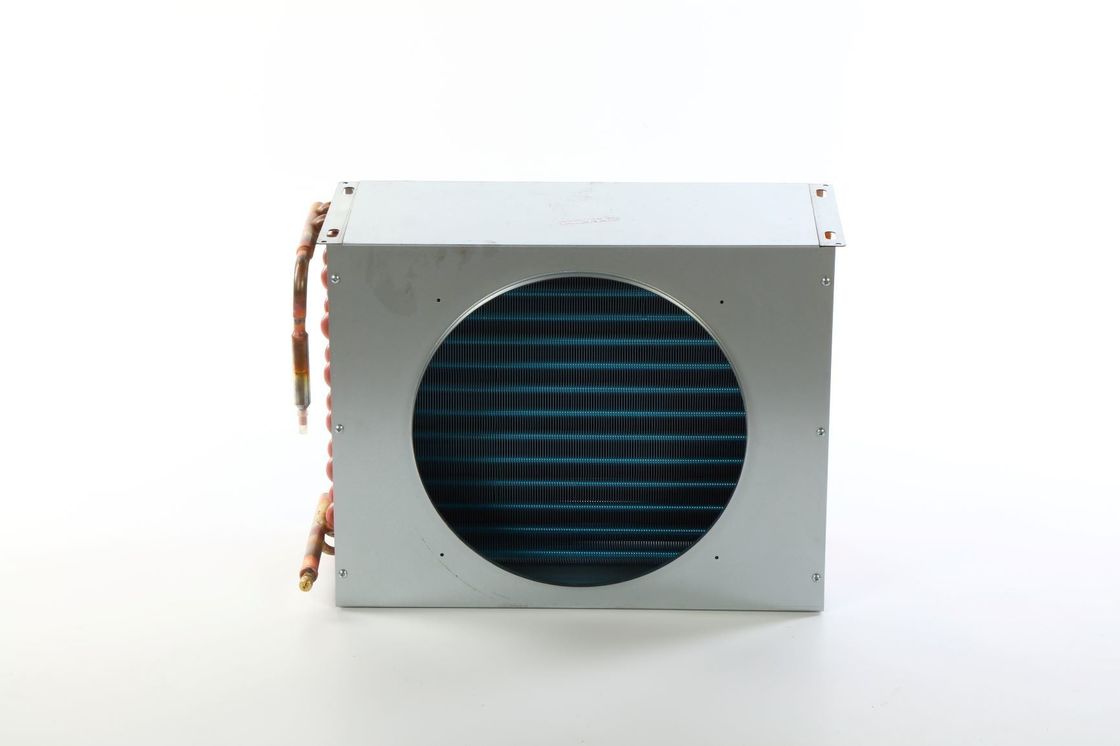

Freezer Microchannel Condenser Evaporator Aluminum Fin Tube

Product Details

Place of Origin: China

Brand Name: sail

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: D/P, L/C, D/A, D/P, T/T

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Freezer microchannel condenser, microchannel condenser Fin Tube, condenser evaporator Fin Tube


Model NO.:	Sail-40	Specification:	Customized
Trademark:	Customized	Origin:	China
HS Code:	8419500090	Supply Ability:	10000 Pieces/Year
Certification:	CE, ISO, RoHS	Application:	Heater, Cooler, Vaporizer, Condenser
Principle:	Regenerative Heat Exchanger	Style:	Steel Type
Material:	Stainless Steel	Transport Package:	By Standard Export Carton Or Wooden Board
Samples:	US$ 80/Piece 1 Piece(Min.Order) \| Request Sample	Customization:	Available \| Customized Request

Model NO.:	Sail-40
Specification:	Customized
Trademark:	Customized
Origin:	China
HS Code:	8419500090
Supply Ability:	10000 Pieces/Year
Certification:	CE, ISO, RoHS
Application:	Heater, Cooler, Vaporizer, Condenser
Principle:	Regenerative Heat Exchanger
Style:	Steel Type
Material:	Stainless Steel
Transport Package:	By Standard Export Carton Or Wooden Board
Samples:	US$ 80/Piece 1 Piece(Min.Order) \| Request Sample
Customization:	Available \| Customized Request

Freezer Microchannel Condenser Evaporator Aluminum Fin Tube

Product Description

Galvanized fan cover, 9.52mm diameter smooth copper tube, aluminum hydropholic fin, fin thickness 0.115mm

For seafood refrigeration

1. Material: copper, aluminum, galvanized plate.

2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.

3. Aluminum foil: hydrophilic or bare

4. Fin type: louver fin, flat fin, corrugated fin

5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm

6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement

Specifications of evaporator
NO	Tube Diameter(mm)	Distance of hole/row(mm)	Fin Style	Fin Space(mm)
1	Φ7	21*12.7	Louvered fin,Plain fin,Sine wave fin	1.4~2.0
2	Φ7	21*18.9	Sine wave fin,Corrugated fin	1.3~1.9
3	Φ7	25*21.65	Louvered fin	1.5~3.8
4	Φ9.52	25.4*22	Louvered fin,Sine wave fin	1.6~6.35
5	Φ9.52	25.4*22	Louverd fin,Plain fin,Sine wave fin	1.6~3.2
6	Φ9.52	25*19	Louverd fin,Plain fin,Sine wave fin	1.4~3.2
7	Φ9.52	25*21.65	Louvered fin,V ripple fin	2.0~3.8
8	Φ9.52	25*25	Plain fin	1.6~3.2
9	Φ9.52	25*21.65	Plain fin	2.0~6.0
10	Φ9.52	25.4*22	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
11	Φ9.52	31.75*27.5	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
12	Φ12.7	31.75*27.5	Plain fin,Sine wave fin,V ripple fin	1.8~6.0
13	Φ12.7	31.75*27.5	Louvered fin,Plain fin,Sine wave fin,V ripple fin	1.7~2.2
14	Φ12.7	31.75*27.5	corrugated fin	1.6~2.9
15	Φ15.88	38.1*33	Plain fin,Sine wave fin,V ripple fin	2~4
1.5~4.1	1.5~4.2	1.5~4.3	1.5~4.4	1.5~4.5
