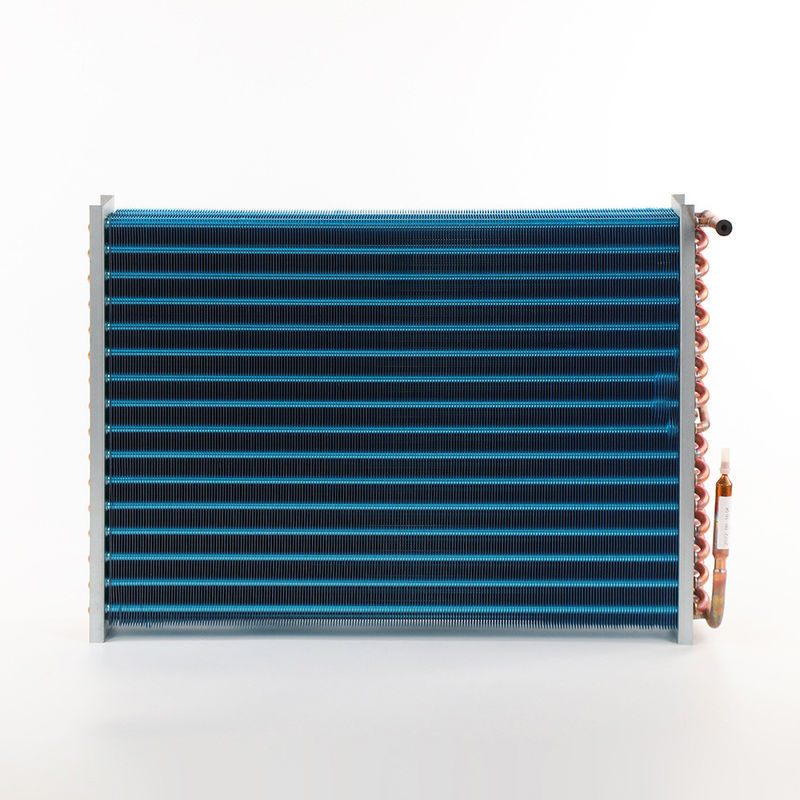

Customized Industrial HVAC Condenser Fin Coil Units Heat Exchanger

Product Details

Place of Origin: China

Brand Name: sail

Certification: RoHS, ISO, CE

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: D/P, L/C, D/A, D/P, T/T

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Customized ac condenser fin, HVAC ac condenser fin, Customized hvac condenser coil


Model NO.:	Sail-4	Form:	Fixed Tube-Sheet
Application Field:	Automotive Industry	Condition:	New
Transport Package:	Standard Exporting Carton Or Box	Specification:	Customized
Trademark:	Customized	Origin:	China
HS Code:	8419500090	Supply Ability:	10000pieces/Year
Condensation Forms:	Air-Cooled	Refrigerant:	CF2Cl2
Type:	Steam Condenser	Material:	Aluminium
Structural Form:	Horizontal	Heat Transfer Mode:	Regenerative
Samples:	US$ 80/Piece 1 Piece(Min.Order) \| Request Sample	Customization:	Available \| Customized Request

Model NO.:	Sail-4
Form:	Fixed Tube-Sheet
Application Field:	Automotive Industry
Condition:	New
Transport Package:	Standard Exporting Carton Or Box
Specification:	Customized
Trademark:	Customized
Origin:	China
HS Code:	8419500090
Supply Ability:	10000pieces/Year
Condensation Forms:	Air-Cooled
Refrigerant:	CF2Cl2
Type:	Steam Condenser
Material:	Aluminium
Structural Form:	Horizontal
Heat Transfer Mode:	Regenerative
Samples:	US$ 80/Piece 1 Piece(Min.Order) \| Request Sample
Customization:	Available \| Customized Request

Customized Industrial HVAC Condenser Fin Coil Units Heat Exchanger

Product Description

The heat exchangers have a wide rang of plications such as: Window, Split and package AC systems

1. Material: copper, aluminum, galvanized plate.

2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.

3. Aluminum foil: hydrophilic or bare

4. Fin type: louver fin, flat fin, corrugated fin

5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm

6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement

Specifications of evaporator

Tube Diameter(mm)

Distance of hole/row(mm)

Fin Style

Fin Space(mm)

Φ7

21*12.7

Louvered fin,Plain fin,Sine wave fin

1.4~2.0

Φ7

21*18.9

Sine wave fin,Corrugated fin

1.3~1.9

Φ7

25*21.65

Louvered fin

1.5~3.8

Φ9.52

25.4*22

Louvered fin,Sine wave fin

1.6~6.35

Φ9.52

25.4*22

Louverd fin,Plain fin,Sine wave fin

1.6~3.2

Φ9.52

25*19

Louverd fin,Plain fin,Sine wave fin

1.4~3.2

Φ9.52

25*21.65

Louvered fin,V ripple fin

2.0~3.8

Φ9.52

25*25

Plain fin

1.6~3.2

Φ9.52

25*21.65

Plain fin

2.0~6.0

Φ9.52

25.4*22

Louvered fin,Plain fin,Sine wave fin

1.6~6.35

Φ9.52

31.75*27.5

Louvered fin,Plain fin,Sine wave fin

1.6~6.35

Φ12.7

31.75*27.5

Plain fin,Sine wave fin,V ripple fin

1.8~6.0

Φ12.7

31.75*27.5

Louvered fin,Plain fin,Sine wave fin,V ripple fin

1.7~2.2

Φ12.7

31.75*27.5

corrugated fin

1.6~2.9

Φ15.88

38.1*33

Plain fin,Sine wave fin,V ripple fin

2~4

1.5~4.1

1.5~4.2

1.5~4.3

1.5~4.4

1.5~4.5

Series 1	Series 2	Series 3	Series 4
Tube Diameter	Φ 9.52	Φ9.52	Φ7	Φ 7.94
Hole Space(mm)	25	25.4	20.5	22
Row Space(mm)	21.65	22	12.7	19.05
Tube Material	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum
Type of Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube
Fin Surface	Louver Fin, Corrugated Fin	Flat Fin, Louver Fin, Corrugated Fin	Flat Fin, Louver Fin	Louver Fin
Fin Type	Hydrophilic Foil, Bare Foil, Copper Foil	Hydrophilic Foil, Bare Foil,	Hydrophilic Foil, Bare Foil, Golden Foil	Hydrophilic Foil, Bare Foil, Golden Foil
Fin Thickness(mm)	0.095~0.2	0.095~0.2	0.095~0.2	0.095~0.2
Fin Space(mm)	1.4~2.3 mm	1.4~2.3 mm	1.1~1.8mm	1.4~2.0 mm
