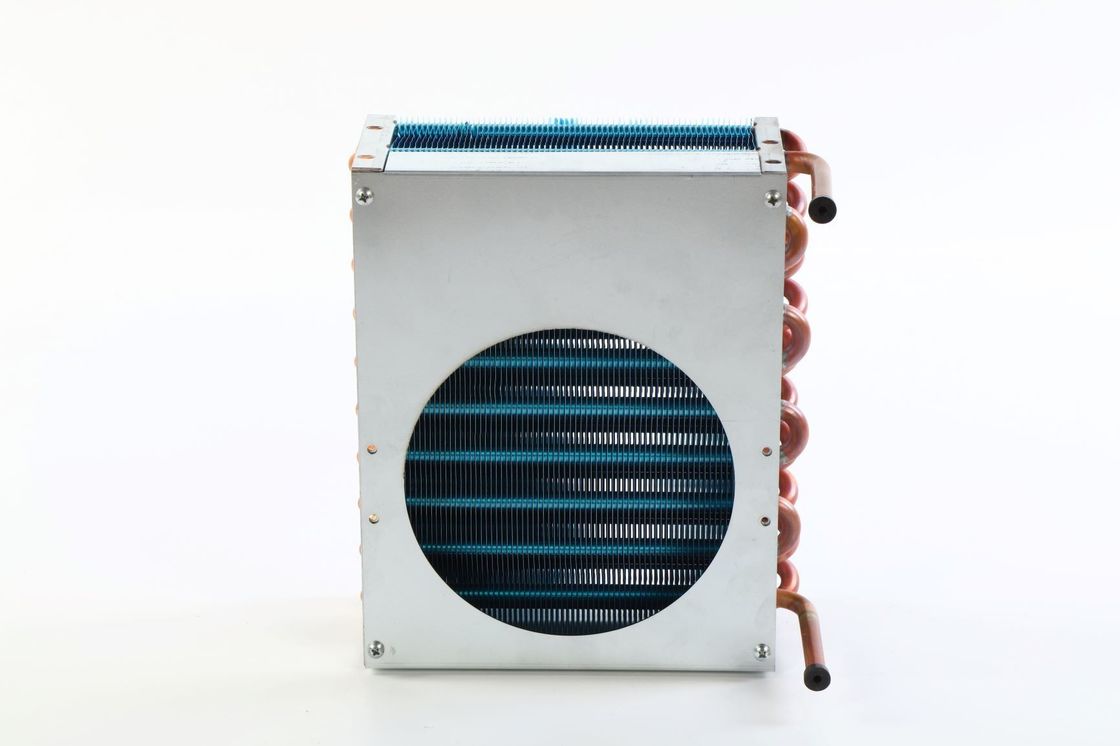

Copper Air Cooler AC Condenser Coil Microchannel For Vaporizer

Product Details

Place of Origin: China

Brand Name: sail

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: D/P, L/C, D/A, D/P, T/T

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Copper AC Condenser Coil, Microchannel AC Condenser Coil, Vaporizer microchannel condenser


Model NO.:	Sail-7	Specification:	Customized
Trademark:	Customized	Origin:	China
HS Code:	8419500090	Supply Ability:	10000 Pieces/Year
Certification:	CE, ISO, RoHS	Application:	Heater, Cooler, Vaporizer, Condenser
Principle:	Regenerative Heat Exchanger	Style:	Plate Type
Material:	Stainless Steel	Transport Package:	By Standard Export Carton Or Wooden Board
Samples:	US$ 80/Piece 1 Piece(Min.Order) \| Request Sample	Customization:	Available \| Customized Request

Model NO.:	Sail-7
Specification:	Customized
Trademark:	Customized
Origin:	China
HS Code:	8419500090
Supply Ability:	10000 Pieces/Year
Certification:	CE, ISO, RoHS
Application:	Heater, Cooler, Vaporizer, Condenser
Principle:	Regenerative Heat Exchanger
Style:	Plate Type
Material:	Stainless Steel
Transport Package:	By Standard Export Carton Or Wooden Board
Samples:	US$ 80/Piece 1 Piece(Min.Order) \| Request Sample
Customization:	Available \| Customized Request

Copper Air Cooler AC Condenser Coil Microchannel For Vaporizer

Product Description

Air cooler is the refrigeration equipment by forcing air circulation through fan to greatly enhance heat convection effect outside the evaporator tube.

All of our products can accept customization, and our products in the course of processing and are subject to stringent quality inspection before delivery, if there is a need, we photographed in the process every step of the process can be sent to customers.

1. Material: copper, aluminum, galvanized plate.

2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.

3. Aluminum foil: hydrophilic or bare

4. Fin type: louver fin, flat fin, corrugated fin

5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm

6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement.

Specifications of evaporator
NO	Tube Diameter(mm)	Distance of hole/row(mm)	Fin Style	Fin Space(mm)
1	Φ7	21*12.7	Louvered fin,Plain fin,Sine wave fin	1.4~2.0
2	Φ7	21*18.9	Sine wave fin,Corrugated fin	1.3~1.9
3	Φ7	25*21.65	Louvered fin	1.5~3.8
4	Φ9.52	25.4*22	Louvered fin,Sine wave fin	1.6~6.35
5	Φ9.52	25.4*22	Louverd fin,Plain fin,Sine wave fin	1.6~3.2
6	Φ9.52	25*19	Louverd fin,Plain fin,Sine wave fin	1.4~3.2
7	Φ9.52	25*21.65	Louvered fin,V ripple fin	2.0~3.8
8	Φ9.52	25*25	Plain fin	1.6~3.2
9	Φ9.52	25*21.65	Plain fin	2.0~6.0
10	Φ9.52	25.4*22	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
11	Φ9.52	31.75*27.5	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
12	Φ12.7	31.75*27.5	Plain fin,Sine wave fin,V ripple fin	1.8~6.0
13	Φ12.7	31.75*27.5	Louvered fin,Plain fin,Sine wave fin,V ripple fin	1.7~2.2
14	Φ12.7	31.75*27.5	corrugated fin	1.6~2.9
15	Φ15.88	38.1*33	Plain fin,Sine wave fin,V ripple fin	2~4
1.5~4.1	1.5~4.2	1.5~4.3	1.5~4.4	1.5~4.5

We can serve for more types of evaporator according to every customers' drawing and requirement

	Series 1	Series 2	Series 3	Series 4
Tube Diameter	Φ 9.52	Φ9.52	Φ7	Φ 7.94
Hole Space(mm)	25	25.4	20.5	22
Row Space(mm)	21.65	22	12.7	19.05
Tube Material	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum
Type of Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube
Fin Surface	Louver Fin, Corrugated Fin	Flat Fin, Louver Fin, Corrugated Fin	Flat Fin, Louver Fin	Louver Fin
Fin Type	Hydrophilic Foil, Bare Foil, Copper Foil	Hydrophilic Foil, Bare Foil,	Hydrophilic Foil, Bare Foil, Golden Foil	Hydrophilic Foil, Bare Foil, Golden Foil
Fin Thickness(mm)	0.095~0.2	0.095~0.2	0.095~0.2	0.095~0.2
Fin Space(mm)	1.4~2.3 mm	1.4~2.3 mm	1.1~1.8mm	1.4~2.0 mm
