Refrigeration Condensing Unit And Evaporator Coil Customized

Product Details

Place of Origin: China

Brand Name: sail

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: D/P, L/C, D/A, D/P, T/T

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Refrigeration condensing unit and evaporator coil, Customized condensing unit and evaporator coil, Customized refrigeration condenser coil


Specification:	Customized	Trademark:	Customized
Origin:	China	HS Code:	8419500090
Supply Ability:	10000 Pieces/Year	Certification:	CE, ISO, RoHS
Application:	Heater, Cooler, Vaporizer, Condenser	Principle:	Regenerative Heat Exchanger
Style:	Plate Type	Material:	Copper
Transport Package:	By Standard Export Carton Or Wooden Board	Samples:	US$ 80/Piece 1 Piece(Min.Order) \| Request Sample
Customization:	Available \| Customized Request

Specification:	Customized
Trademark:	Customized
Origin:	China
HS Code:	8419500090
Supply Ability:	10000 Pieces/Year
Certification:	CE, ISO, RoHS
Application:	Heater, Cooler, Vaporizer, Condenser
Principle:	Regenerative Heat Exchanger
Style:	Plate Type
Material:	Copper
Transport Package:	By Standard Export Carton Or Wooden Board
Samples:	US$ 80/Piece 1 Piece(Min.Order) \| Request Sample
Customization:	Available \| Customized Request

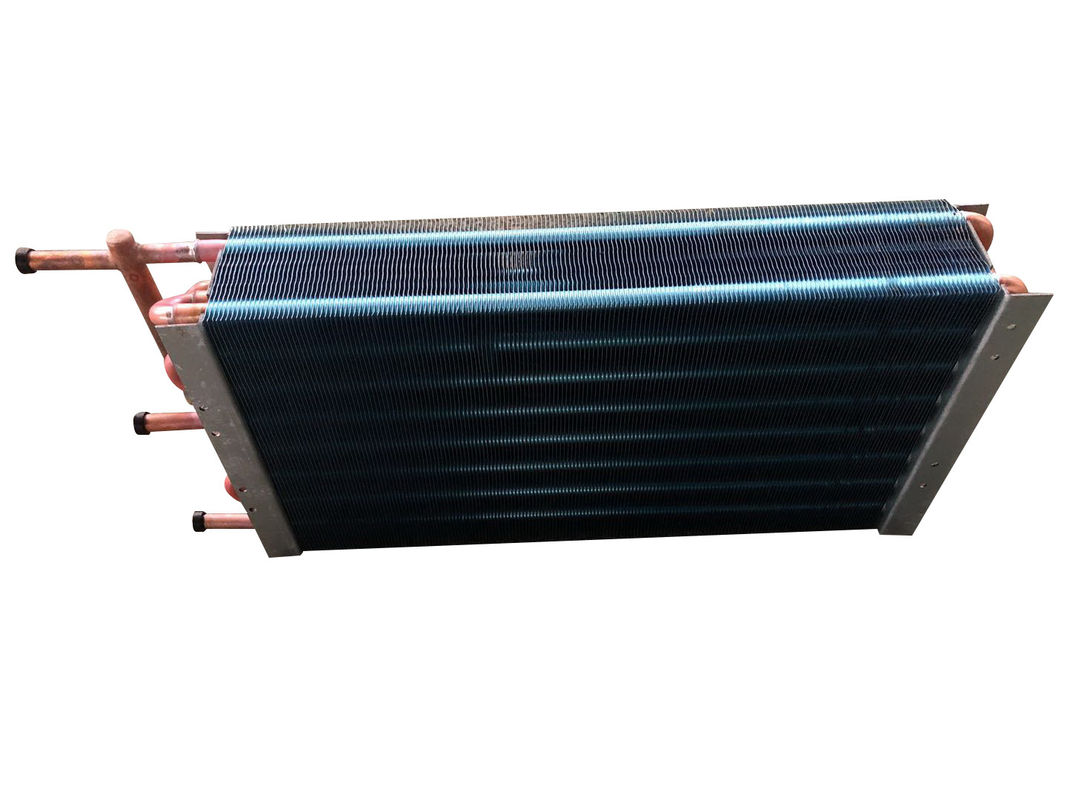

Refrigeration Condensing Unit And Evaporator Coil Customized

Product Description

1. Material: copper, aluminum, galvanized plate.

2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.

3. Aluminum foil: hydrophilic or bare

4. Fin type: louver fin, flat fin, corrugated fin

5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm

6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement.

Specifications of evaporator
NO	Tube Diameter(mm)	Distance of hole/row(mm)	Fin Style	Fin Space(mm)
1	Φ7	21*12.7	Louvered fin,Plain fin,Sine wave fin	1.4~2.0
2	Φ7	21*18.9	Sine wave fin,Corrugated fin	1.3~1.9
3	Φ7	25*21.65	Louvered fin	1.5~3.8
4	Φ9.52	25.4*22	Louvered fin,Sine wave fin	1.6~6.35
5	Φ9.52	25.4*22	Louverd fin,Plain fin,Sine wave fin	1.6~3.2
6	Φ9.52	25*19	Louverd fin,Plain fin,Sine wave fin	1.4~3.2
7	Φ9.52	25*21.65	Louvered fin,V ripple fin	2.0~3.8
8	Φ9.52	25*25	Plain fin	1.6~3.2
9	Φ9.52	25*21.65	Plain fin	2.0~6.0
10	Φ9.52	25.4*22	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
11	Φ9.52	31.75*27.5	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
12	Φ12.7	31.75*27.5	Plain fin,Sine wave fin,V ripple fin	1.8~6.0
13	Φ12.7	31.75*27.5	Louvered fin,Plain fin,Sine wave fin,V ripple fin	1.7~2.2
14	Φ12.7	31.75*27.5	corrugated fin	1.6~2.9
15	Φ15.88	38.1*33	Plain fin,Sine wave fin,V ripple fin	2~4
1.5~4.1	1.5~4.2	1.5~4.3	1.5~4.4	1.5~4.5

We can serve for more types of evaporator according to every customers' drawing and requirement

	Series 1	Series 2	Series 3	Series 4
Tube Diameter	Φ 9.52	Φ9.52	Φ7	Φ 7.94
Hole Space(mm)	25	25.4	20.5	22
Row Space(mm)	21.65	22	12.7	19.05
Tube Material	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum
Type of Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube
Fin Surface	Louver Fin, Corrugated Fin	Flat Fin, Louver Fin, Corrugated Fin	Flat Fin, Louver Fin	Louver Fin
Fin Type	Hydrophilic Foil, Bare Foil, Copper Foil	Hydrophilic Foil, Bare Foil,	Hydrophilic Foil, Bare Foil, Golden Foil	Hydrophilic Foil, Bare Foil, Golden Foil
Fin Thickness(mm)	0.095~0.2	0.095~0.2	0.095~0.2	0.095~0.2
Fin Space(mm)	1.4~2.3 mm	1.4~2.3 mm	1.1~1.8mm	1.4~2.0 mm

Factory Price Hot Selling Refrigerator Evaporator Coil Fin Coil Condenser

Regular maintenance for condenser and evaporator coils is essential! Dirty coils can reduce efficiency, increase energy costs, reduce the system’s lifespan, and cause structural damage.
